大力矩變速箱
型號：
大力矩小微型變速箱
基本介紹
小微型大力矩變速箱是更緊湊、體積小、重量輕，但依然需要承受較大的扭矩的方案。適用于小微型設備。應用場景在比如機器人、無人機、小型電動車輛、精密儀器、航空航天執行器 。這些領域?qū)臻g和重量有嚴格限制，但扭矩需求較高，需解決如何在有限空間內實現高扭矩傳遞，同時保持高效率。

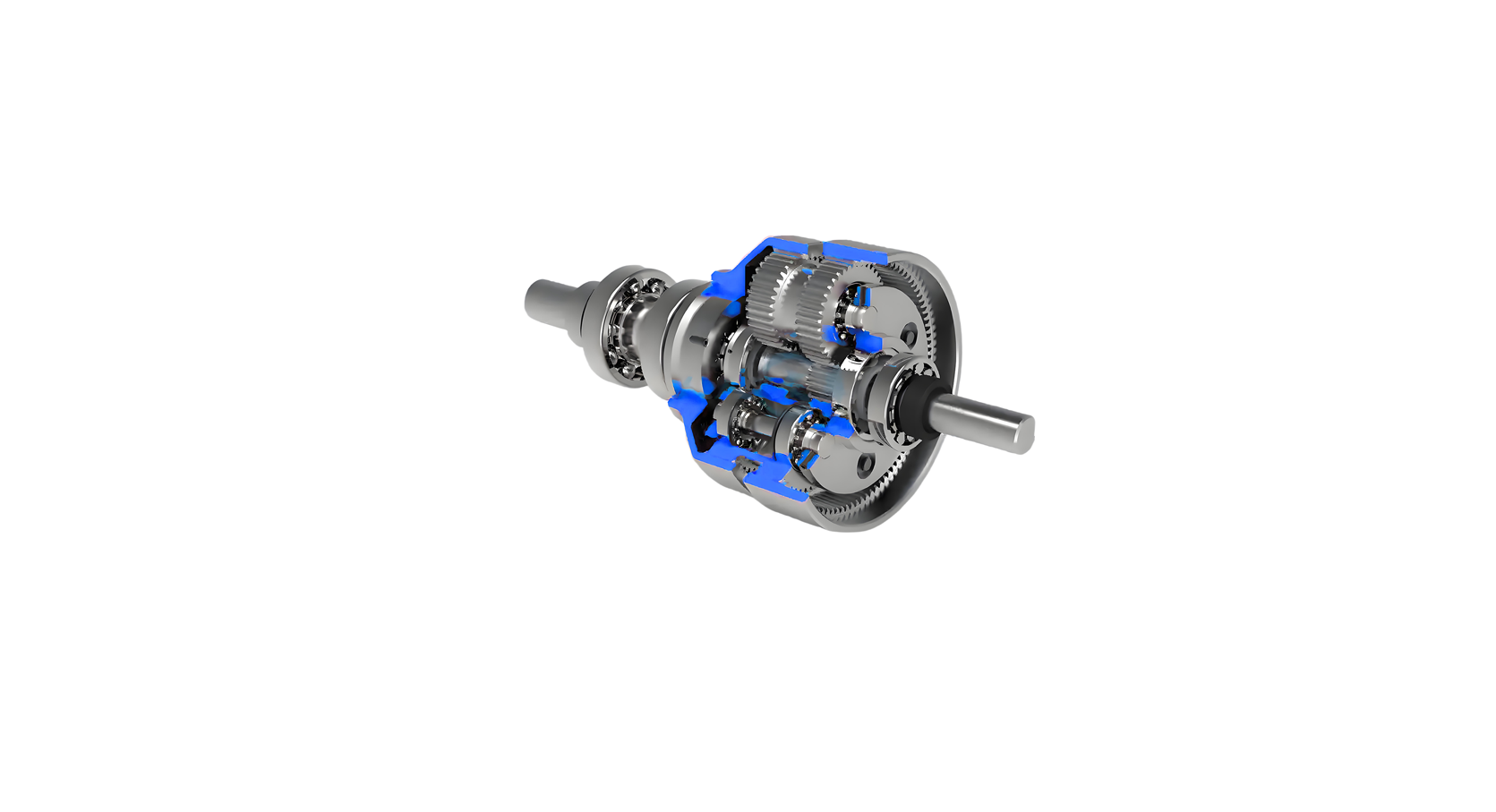

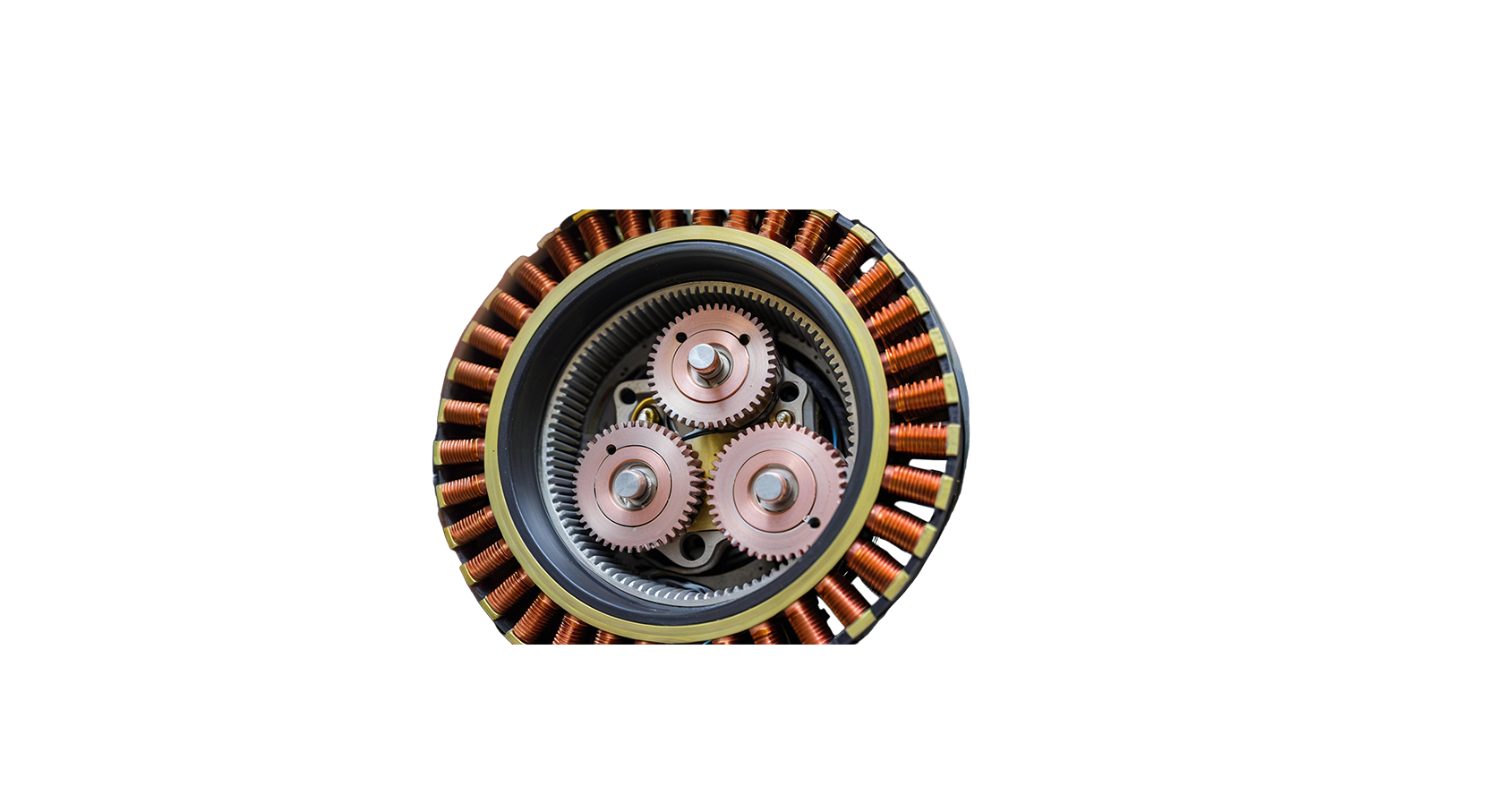

小微型變速箱可能需要使用高強度材料，比如鈦合金或復合材料，以減輕重量。齒輪設計采用行星齒輪組或諧波傳動，這些結構緊湊且能提供高減速比。通過特殊潤滑油脂來潤滑和散熱。
微型大力矩變速箱扭矩范圍在0.1-5 Nm之間，但體積只有傳統的70%。該小微型變速箱采用模塊化設計，方便集成到不同設備中，可根據智能控制功能要求集成傳感器實時監測運行狀態。成都中科智成公司可根據客戶需求研發定制方案，以適應更復雜的場景應用。
小微型大力矩變速箱正朝著「更高扭矩密度、更智能集成、更極端環境適應」方向突破，未來在醫療機器人、太空探索等領域?qū)⒋呱囝嵏残詰?yīng)用。
技術規格
The small and micro high torque transmission is a more compact, smaller in size, and lighter in weight solution, but still needs to withstand greater torque. Suitable for small and micro devices. Application scenarios include robots, drones, small electric vehicles, precision instruments, and aerospace actuators. These fields have strict limitations on space and weight, but require high torque. It is necessary to solve how to achieve high torque transmission in a limited space while maintaining high efficiency.
Small and micro gearboxes may require the use of high-strength materials, such as titanium alloys or composite materials, to reduce weight. The gear design adopts planetary gear sets or harmonic drives, which are compact and can provide high reduction ratios. Lubricate and dissipate heat through special lubricating grease.
The torque range of the micro torque gearbox is between 0.1-5 Nm, but its volume is only 70% of the traditional one. This small and micro gearbox adopts a modular design, which is easy to integrate into different devices. It can integrate sensors to monitor the operating status in real time according to the requirements of intelligent control functions. Chengdu Zhongke Zhicheng Company can develop customized solutions according to customer needs to adapt to more complex scenario applications.
Small and micro high torque transmissions are breaking through towards higher torque density, smarter integration, and more extreme environmental adaptability. In the future, they will give rise to more disruptive applications in fields such as medical robots and space exploration.
